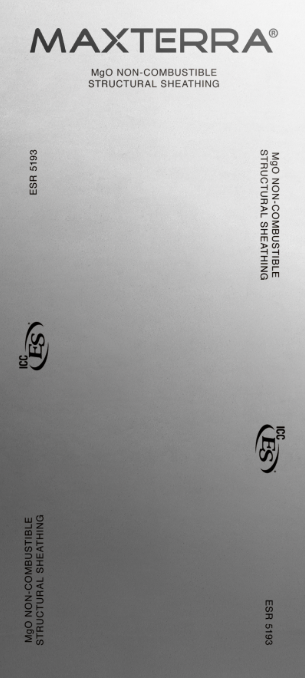

Exterior Structural Sheathing (MgO)
Description
- High-impact resistance and structural support.
Uses
- Exterior/Interior Sheathing
- Underlayment
- SIP Skins
Replaces
- OSB/Plywood
- Engineered Wood Sheathing
- Other Structural Panelized Wall Sheathing Products
Key Advantages
- Enhanced Safety: Eliminates flammable materials.
- Ease of Use: Facilitates efficient installation.
- Long-Lasting Durability: Sturdy, low-maintenance solution.
- Versatile Application: Suitable for various sheathing needs.
Physical Specifications
- Thicknesses: ½” (12mm), 5/8” (16mm).
- Dimensions: 4′ x 8′, 4′ x 10′, 4′ x 12′.
- Weight:
- 1/2″ – 2.83 lbs/sq ft
- 5/8″ – 3.77 lbs/sq ft
- Edge Treatments: Square
Code Compliance
- ICC ESR-5193
- Chicago Building Code Supplement.
- Los Angeles County Building Code Supplement, Commercial and Residential.
- California Building Code Supplement, Commercial and Residential.
- Florida Building Code Supplement, Commercial and Residential.
- Florida Product Approval for use on SIPs.
- Certified for use on Wood, Light Gauge Steel, and Mass Timber Floor Applications.
- 2021, 2018, and 2015 International Building Code®
- 2021, 2018, and 2015 International Residential Code.
- ICC-ESL 1568 for Fire Rated Assemblies.
- Non-Combustible: ASTM E-136 rating, as referenced by the 2024 IBC and 2024 IRC .
- ASTM E84 Flame Spread 0, Smoke Developed 0
- AC 386, AC 269.1, AC 269.2, AC 376, AC 378 Fiber Reinforced MgO Sheathing.
- E119/UL 263 One- and Two-Hour Fire Rated Assemblies.
- NFPA 285
- International Wildland Urban Interface Code (IWUIC).
